Single Point Load Cell XBL (XBL-Ex)

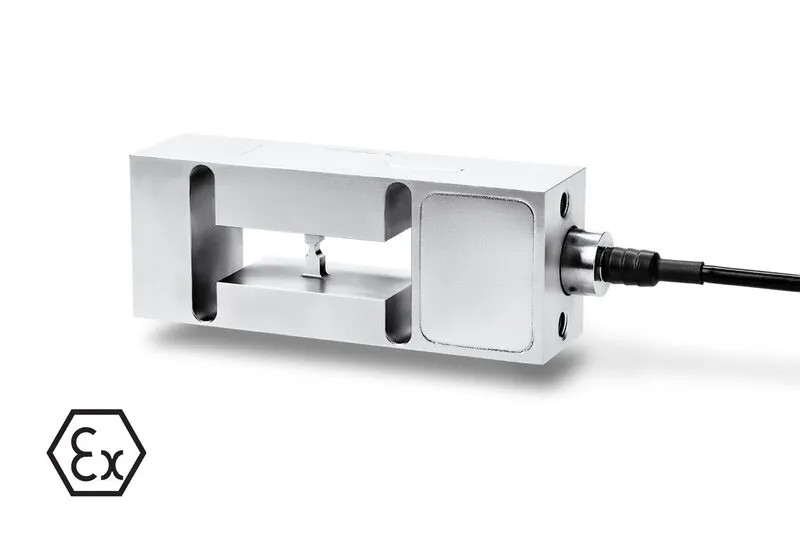

The robust digital single point load cell type XBL in stainless steel is hermetically sealed to IP68K. The load cell is developed for machine builders who have tasks within dynamic...

SINGLE POINT LOAD CELLS

Single Point Load Cell XBL (XBL-Ex)

The robust digital single point load cell type XBL in stainless steel is hermetically sealed to IP68K. The load cell is developed for machine builders who have tasks within dynamic weighing, multihead weighers, factory automation, packaging machines, filing and dosing, flow measurement, bench and platform scales, conveyor scales, process weighing and check weighers. ATEX (Ex) and IECEx versions are available.

Product Details

Model	Type	Standard Capacities ( Kg )	Safe Overload Tolerance	Accuracy Classes
XBL Series	Platform/Single Point	3, 5, 10, 15, 20, 30, 50, 100 kg	up to 1000% of rated capacity	0.025%, 0.015%
