Sensors

MANNER Sensortelemetrie GmbH, combine various sensors with our sensor telemetry system. This means that MANNER select the suitable sensor for the variable to be measured together with the customer. Either...

Telemetry Systems

Sensors

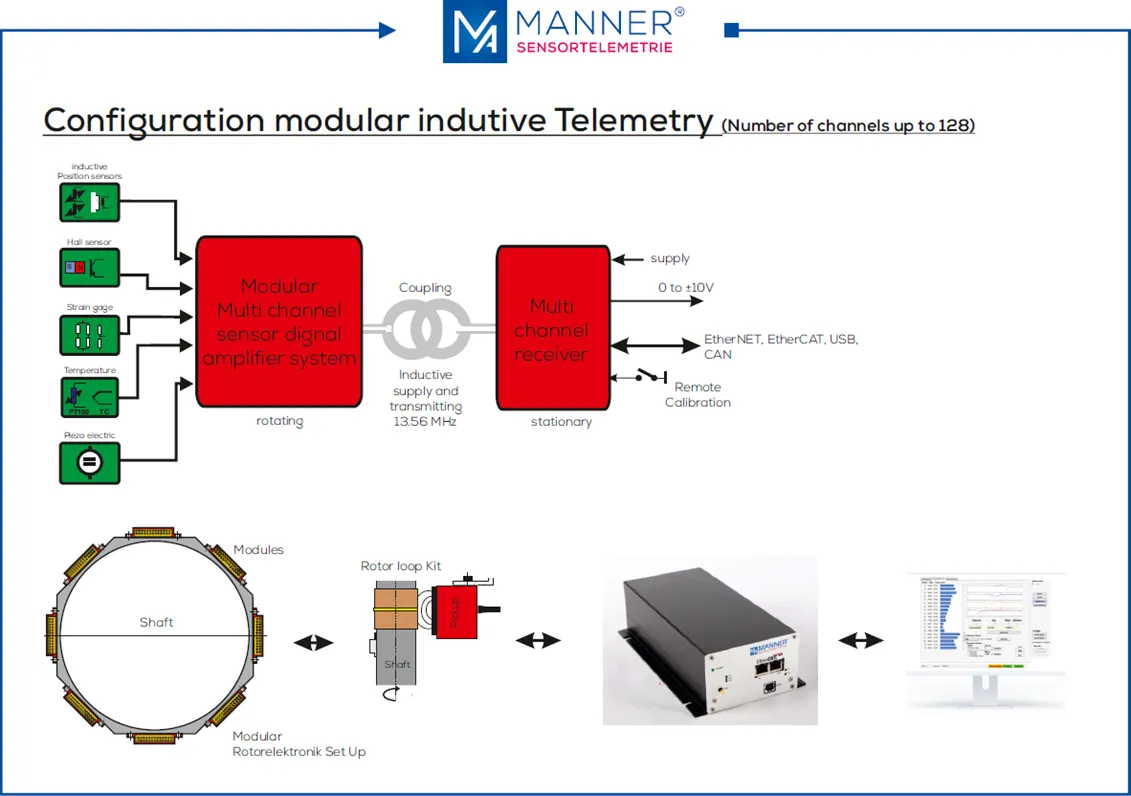

MANNER’s multifunctional systems can be adapted to almost any sensor. A selection of typical applied sensors is mentioned here as an example. This is not a complete list of available sensors.

Product Details

• Strain gauges in ¼-, ½-, and full bridge circuit (recording of strains, manufacture of measuring elements for recording axial force, bending moment, torque …)
• Accelerometers
• Pressure sensors
• Temperature sensors (PT100, TC, others)
• Inductive displacement sensors
• Speed sensors
• Bearing encoder
• Angle encoder

HYGIENIC LOAD CELLS Compression Load Cell CL (CL-Ex) Detailed Information

NEW hygienic (aseptic) compression load cell types CL and CL-Ex in EHEDG compliant design. These robust digital compression load cells are produced in electropolished stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate in AISI316. The compression load cell type CL-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22).

HYGIENIC LOAD CELLS Compression Load Cell DLC (DLC-Ex) Detailed Information

Capacitive load cells with integrated lift-off protection (Patent Pending) for installations e.g. in areas with seismic activity, outdoor silos and high shear mixers. These robust digital compression load cells in EHEDG compliant design are produced in electropolished stainless steel and hermetically sealed to IP68. The load cells type DLC-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22).

HYGIENIC LOAD CELLS Compression Load Cell CM125 (CM125-Ex) Detailed Information

NEW hygienic (aseptic) compression load cell types CM and CM-Ex with 125mm diameter in EHEDG compliant design. These robust digital compression load cells are available in capacities up to 20 tons and produced in electropolished stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate in AISI316. The compression load cell type CM-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22).

HYGIENIC LOAD CELLS Compression Load Cell CM150 (CM150-Ex) Detailed Information

NEW hygienic (aseptic) compression load cell types CM and CM-Ex with 150mm diameter in EHEDG compliant design. These robust digital compression load cells are available in capacities up to 50 tons and produced in electropolished stainless steel and hermetically sealed to IP68 for hygienic weighing installations, installations in tough environments and general process weighing. The load cells can be supplied with a hygienic base plate in AISI316. The compression load cell type CM-Ex can be used in ATEX (Ex) and IECEx applications (Zone 1, 2, 21 and 22).

HYGIENIC LOAD CELLS Beam Load Cell BL (BL-Ex) Detailed Information

Robust digital beam load cell in a hygienic (aseptic) design for dynamic weighing, process weighing, filling, packaging and general weighing in food, pharma and life science applications. The new hygienic EHEDG compliant design in stainless steel is without gaps or edges for easy cleaning in order to minimize the risk of bacteria growth. The BL/BL-Ex load cell is OIML and NTEP certified and certified for installation in ATEX (Ex) and IECEx environment in Zone 1, 2, 21 and 22.

HYGIENIC LOAD CELLS Hygienic Single Point Load Cell SBL (SBL-Ex) Detailed Information

Compact digital beam load cell for single-use bag weighing, process weighing, force measurement, and general weighing in food, biopharmaceutical, and life science applications. This load cell is a shorter version of the BL beam load cell and is manufactured in stainless steel and laser welded (IP68).

HYGIENIC LOAD CELLS Compression Load Cell DMC125 (DMC125-Ex) Detailed Information

Capacitive load cells with integrated lift-off protection (patented) designed for large capacities such as process weighing in areas with seismic activity and outdoor silos. The robust digital load cells are made of stainless steel and hermetically sealed (IP68) for hygienic installations as well as installations in harsh environments and general process weighing. The load cells are also made in hygienic (aseptic) design according to EHEDG guidelines. Load cell type DMC-Ex can be used in ATEX (Ex) and IECEx applications (zones 1, 2, 21 and 22).

HYGIENIC LOAD CELLS Compression Load Cell DMC150 (DMC150-Ex) Detailed Information

WEIGHING TERMINAL Weighing Indicator type 5024G Detailed Information

Fully digital OIML certified weighing indicator type 5024G with alibi memory and software for standard weighing applications. Digital signal processor for displaying and processing data from the Eilersen range of digital load cells. Durable capacitive touch keyboard.

SCALES Hygienic Scales Detailed Information

Eilersen has developed a range of robust floor and pit scales featuring a hinged gas lift load plate for easy washdown in hygienic applications. Scales integrated in the production process have to meet strict hygienic requirements while being so robust that a forklift can drive into, or over, the scale without damaging the load cells. Furthermore the scale must to be very safe and easy to clean. The new range of hygienic and robust IP68 rated scales from Eilersen fulfills these requirements.

SCALES ATEX EX-PROOF SCALES Detailed Information

ATEX scales based on Eilersen robust IP68 load cells for installation in ATEX rated area (zone 1, 2, 21, and 22) and typically used in food, pharma, chemical and offshore applications where reliability is a must.

MOBILE TOTES/MOBILE SCALES Mobile Totes/Mobile Scales Detailed Information

Solutions for Cleanroom Bioprocessing

Eilersen load cells are the optimal choice for single-use technology in cleanroom bioprocessing. Developed and produced in Denmark, Eilersen's capacitive load cells resistant to overloads and sideloads, offering a robust alternative to strain gauge load cells.

WEIGHING MODULES PROFINET Weighing Module 4X70A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) PROFINET interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via PROFINET. The interface module type 4X70A can also be used in non-ATEX installations.

WEIGHING MODULES EtherCAT Weighing Module 4X60A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) EtherCAT interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via EtherCAT. The interface module type 4X60A can also be used in non-ATEX installations.

WEIGHING MODULES Profibus DP Module 4X35A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) Profibus DP interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via Profibus DP. The interface module type 4X35A can also be used in non-ATEX installations.

WEIGHING MODULES EtherNet/IP module 4X50A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) EtherNet/IP interface module for directly interfacing up to 4 digital ATEX / IECEx load cells. The interface module type 4X50A can also be used in non-ATEX installations.

WEIGHING MODULES Modbus TCP/IP Module 4X50A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) Modbus TCP/IP interface module for directly interfacing up to 4 digital ATEX / IECEx load cells. The interface module type 4X50A can also be used in non-ATEX installations.

WEIGHING MODULES Analog Output Module 4X79A Detailed Information

Analog output weighing module featuring an LED display, 4-20mA or 0-10Vdc active analog output and digital EtherNet interface. The module also features 4 I/O for level alarms and remote zeroing. This module can directly connect to up to 4 digital load cells, and can be used for ATEX / IECEx and non-ATEX installations.

WEIGHING MODULES Serial Interface Module 4X40A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) RS485 interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via RS485. The interface module type 4X40A can also be used in non-ATEX installations.

WEIGHING MODULES DeviceNet Interface Module 4X37A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) DeviceNet interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via DeviceNet. The interface module type 4X37A can also be used in non-ATEX installations.

WEIGHING MODULES ATEX-Ex Power Supply type 4051A Detailed Information

ATEX and IECEx certified (zone 1, 2, 21, 22) power supply type 4051A used for supplying 4XXXA interface modules when used in ATEX / IECEx rated applications. The 4051A power supply and 4XXXA interface module must be installed in safe area i.e. outside the ATEX zone.

WEIGHING MODULES OEM Weighing Module 4840OEM Detailed Information

OEM weighing module for interfacing up to 8 digital load cells to PLCs, PCs etc. The module offers serial RS485, Modbus TCP/IP and EtherNet IP interfaces. This weighing module is developed for OEM use and can be equipped with customized protocols. The module communicates weight, status and diagnostics for each individual load cell connected to the weighing module.

WEIGHING MODULES OEM Weighing Board 5008OEM Detailed Information

OEM weighing board for interfacing up to 8 digital load cells to PLCs, PCs etc. The board offers serial RS485, EtherNet and EtherNet IP interfaces. This weighing board is developed for OEM use and can be equipped with customized protocols. The board communicates weight, status and diagnostics for each individual load cell connected to the weighing board.

WEIGHING MODULES OEM Weighing Module 5016OEM Detailed Information

OEM weighing board for interfacing up to 16 digital load cells to PLCs, PCs etc. The board offers serial RS485, EtherNet, EtherNet IP and EtherCAT/PROFINET (pending) interfaces. This weighing board is developed for OEM use and can be equipped with customized protocols. The board communicates weight, status and diagnostics for each individual load cell connected to the weighing board.

EILERCAL MOBILE TANK WEIGHING and CALIBRATION SYSTEMS EilerCal Mobile Tank Weighing and Calibration Systems Detailed Information

Introducing the EilerCal™

As the original creator of the force tensioning system for calibration, Eilersen is now ready with a new and improved design. The new Eilersen EilerCal™ (patents pending) solution consist of a customized high quality hydraulic cylinder, a digital reference load cell measuring the applied force, and a weighing terminal with a display.

The New Standard in Calibration Technology
The EilerCal force transfer system is developed to remove the need for weights and/or water when calibrating all types of load cells. Using the EilerCal™, technicians are able to frequently perform quick calibrations of installed tanks - without tank entry and risk of contamination.

XtreMA HP-High Precision Torque Flange Series XtreMA HP-High Precision Torque Flange Series Detailed Information

The highly accurate measuring flange series for flexible use from 50 Nm to 10 kN·m
Standard measurement ranges N.m : 50 Nm, 100 Nm, 200 Nm, 500 Nm, 1 kN·m, 2 kN·m, 3 kN·m, 5 kN·m 10 kN·m

High precision Torque transducers as test bench measuring equipment for combustion engines, hybrid and electric drives

Precise torque measurement is a key factor in the development of combustion engines, hybrid and electric modules – especially on test benches for validation. As optimization potential becomes increasingly refined, high-resolution torque transducers are required to measure even the smallest increases in efficiency.

XtreMAX-High Torque Measurement Flange Series XtreMAX-High Torque Measurement Flange Series Detailed Information

High Torque measuring flange series from 15 kN·m to 800 kN·m

XtreMAX – The torque flange series for power and efficiency increases in large engines, wind power, marine engines as well as gas turbines and much more

The central measured variable for determining the load signal is the torque in conjunction with the speed. For high nominal torques in the field of large engines, wind power, marine engines and gas turbines, the XtreMAX torque flange series offers an attractive and highly accurate measurement solution for power and efficiency increases, to realise compliance with norms as well as various other measurement tasks.

XtreMA HS High-Speed Torque Measurement Sytems XtreMA HS High-Speed Torque Measurement Sytems Detailed Information

- High Speed Torque measuring flange series from 0,1 kNm to 20 kNm

- Nominal maximum speed up to 40.000 rpm ( up to 65.000 rpm depends on size )

XtreMA MW-Torque Measurement Shafts XtreMA MW-Torque Measurement Shafts Detailed Information

- Torque measuring shaft ranges from 1 Nm to 500 Nm

- Standard measurement ranges Nm : 1, 2, 5,10, 20,5 0,100, 200 & 500 Nm

- Nominal maximum speed up to 25.000 rpm ( up to 100.000 rpm depends on size )

Telemetry Systems Sensors Detailed Information

MANNER’s multifunctional systems can be adapted to almost any sensor. A selection of typical applied sensors is mentioned here as an example. This is not a complete list of available sensors.

Telemetry Systems Measuring Amplifier Detailed Information

The measuring amplifier processes the raw value of the sensor. Error compensation at the highest level is already carried out here.

Correction polynomials are stored in the measuring amplifier to compensate for a zero drift or temperature drift of the measured variable. Thus, a highly accurate digital measuring signal is available which can then be transmitted without contact.

Telemetry Systems Data Transmission Detailed Information

MANNER Sensortelemetrie GmbH offers the solution of a problem. In order to define the suitable transmission technology for you, we are at your disposal with our know-how and almost 30 years of experience.

The advantages of inductive transmission are complete freedom from maintenance over decades and insensitivity to interference. MANNER has various transmission frequencies which cover shaft diameter ranges from 10 millimeters to 5 meters. Inductive systems are characterized by:

Telemetry Systems Evaluation Unit Detailed Information

MANNER Sensortelemetrie GmbH offers various forms of a data evaluation unit. From compact designs with integrated stator antenna and compact tube housings up to 19-inch plug-in units for test bench applications.

Depending on customer requirements, a wide variety of output signals can be realized. To name a few:

Telemetry Systems Data Collection and Data Analysis Detailed Information

The data recorded by the evaluation unit can be transferred to a PC. There the MANNER data recording software can be used to view the data, record them and remotely configure the measuring chain.

COMPRESSION TYPE LOAD CELLS Compression Load Cell CL (CL-Ex) Detailed Information

COMPRESSION TYPE LOAD CELLS Compression Load Cell DLC (DLC-Ex) Detailed Information

COMPRESSION TYPE LOAD CELLS Compression Load Cell CM125 (CM125-Ex) Detailed Information

COMPRESSION TYPE LOAD CELLS Compression Load Cell CM150 (CM150-Ex) Detailed Information

COMPRESSION TYPE LOAD CELLS Compression Load Cell DMC125 (DMC125-Ex) Detailed Information

COMPRESSION TYPE LOAD CELLS Compression Load Cell DMC150 (DMC150-Ex) Detailed Information

COMPRESSION TYPE LOAD CELLS Compression Load Cell CH100 (CH100-Ex) Detailed Information

Robust digital ATEX and IECEx certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The CH-Ex load cell can be used in ATEX (Ex) IECEx and non-ATEX applications.

COMPRESSION TYPE LOAD CELLS Compression Load Cell CH500 (CH500-Ex) Detailed Information

SINGLE POINT LOAD CELLS Single Point Load Cell SPSX (SPSX-Ex) Detailed Information

The robust digital single point load cell type SPSX is produced in stainless steel and hermetically sealed to IP69K. The main applications are graders, multihead weighers, checkweighers, filling machines, belt scales, platform scales, bench scales etc. The SPSX load cell is OIML and NTEP approved. ATEX (Ex) and IECEx approved versions for installation in ATEX zone are also available.

SINGLE POINT LOAD CELLS Single Point Load Cell SPSXL (SPSXL-Ex) Detailed Information

The robust digital single point load cell type SPSXL in stainless steel is hermetically sealed to IP69K. The main applications are graders, checkweighers, filling and dosing equipment, belt scales, platform scales, bench scales etc. ATEX (Ex) and IECEx approved versions are available.

SINGLE POINT LOAD CELLS Single Point Load Cell XBL (XBL-Ex) Detailed Information

The robust digital single point load cell type XBL in stainless steel is hermetically sealed to IP68K. The load cell is developed for machine builders who have tasks within dynamic weighing, multihead weighers, factory automation, packaging machines, filing and dosing, flow measurement, bench and platform scales, conveyor scales, process weighing and check weighers. ATEX (Ex) and IECEx versions are available.

TENSION,WEB TENSION LOAD CELLS Web Tension Load Cell TL 101A Detailed Information

The robust digital TL 101A and TL 101A-ST load cells are designed primarily for measuring web tension. The load cell type TL 101A-ST offers extra safety in applications with heavy rollers and increased temperature compensation. The TL 101A load cell has same dimensions as the ABB PFTL 101A.

TENSION,WEB TENSION LOAD CELLS Web Tension Load Cell TL 101B Detailed Information

The robust digital TL 101B load cell is a heavy duty version designed primarily for measuring web tension. The TL 101B load cell has same dimensions as the ABB PFTL 101B load cell.

TENSION,WEB TENSION LOAD CELLS Tension Load Cell TM Detailed Information

The robust digital tension load cell type TM is produced in stainless steel and used for weighing suspended vessels, in cranes, lifts and for measuring forces in heavy duty equipment. ATEX versions are available.
