OEM Weighing Module 4840OEM

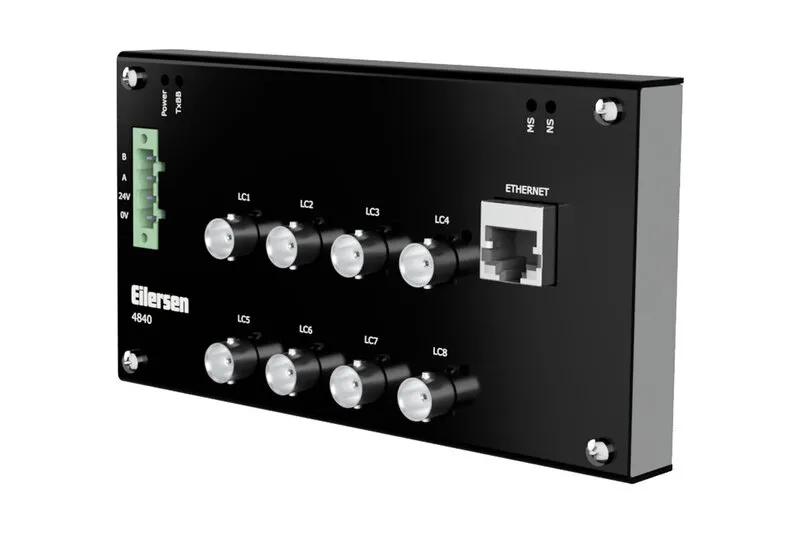

OEM weighing module for interfacing up to 8 digital load cells to PLCs, PCs etc. The module offers serial RS485, Modbus TCP/IP and EtherNet IP interfaces. This weighing module is...

WEIGHING MODULES

OEM Weighing Module 4840OEM

OEM weighing module for interfacing up to 8 digital load cells to PLCs, PCs etc. The module offers serial RS485, Modbus TCP/IP and EtherNet IP interfaces. This weighing module is developed for OEM use and can be equipped with customized protocols. The module communicates weight, status and diagnostics for each individual load cell connected to the weighing module.

Product Details

Model	Types	Interface	Input
OEM Weighing Module 4840OEM	4840OEM	RS485, EtherNet/IP	Up to 8 digital load cells
