Profibus DP Module 4X35A

ATEX and IECEx certified (zone 1, 2, 21, 22) Profibus DP interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via Profibus DP. The interface...

WEIGHING MODULES

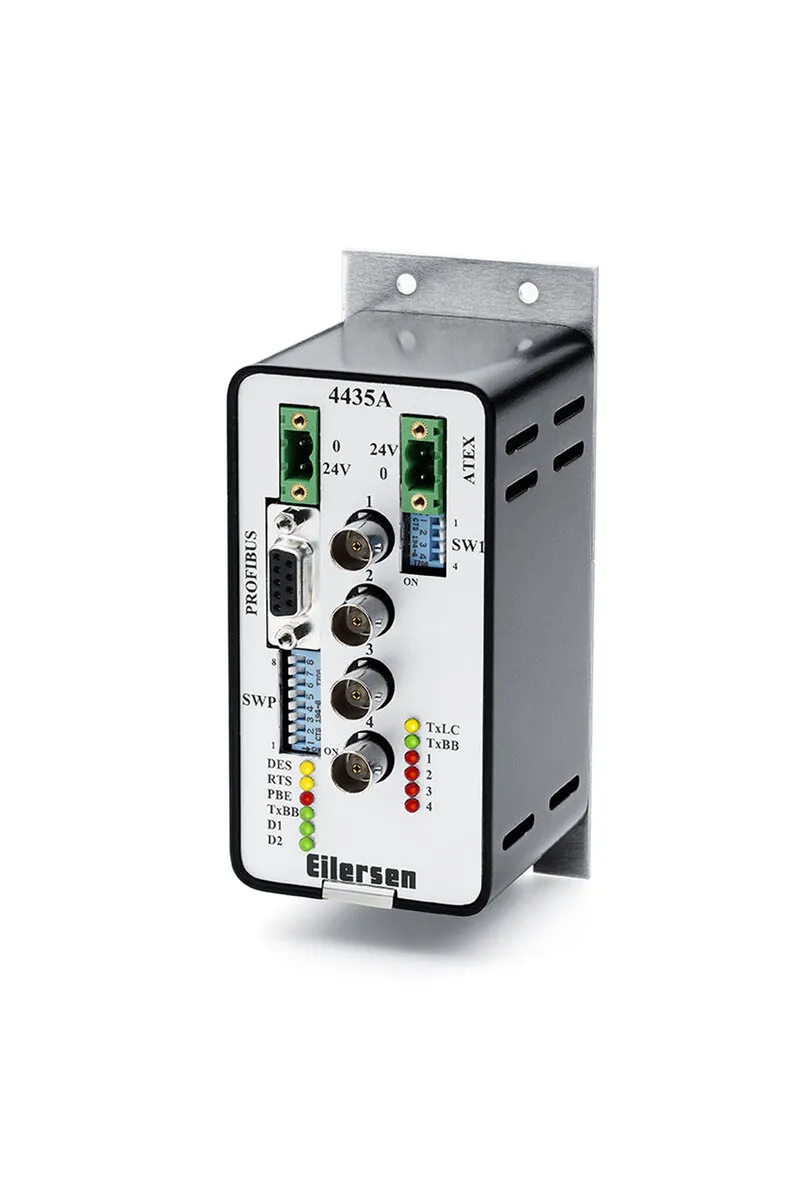

Profibus DP Module 4X35A

ATEX and IECEx certified (zone 1, 2, 21, 22) Profibus DP interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via Profibus DP. The interface module type 4X35A can also be used in non-ATEX installations.

Product Details

Model	Types	Interface	Input
Profibus DP Module 4X35A	4135A, 4235A, 4335A, 4435A	Profibus DP	Up to 4 digital load cells
