Serial Interface Module 4X40A

ATEX and IECEx certified (zone 1, 2, 21, 22) RS485 interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via RS485. The interface module type...

WEIGHING MODULES

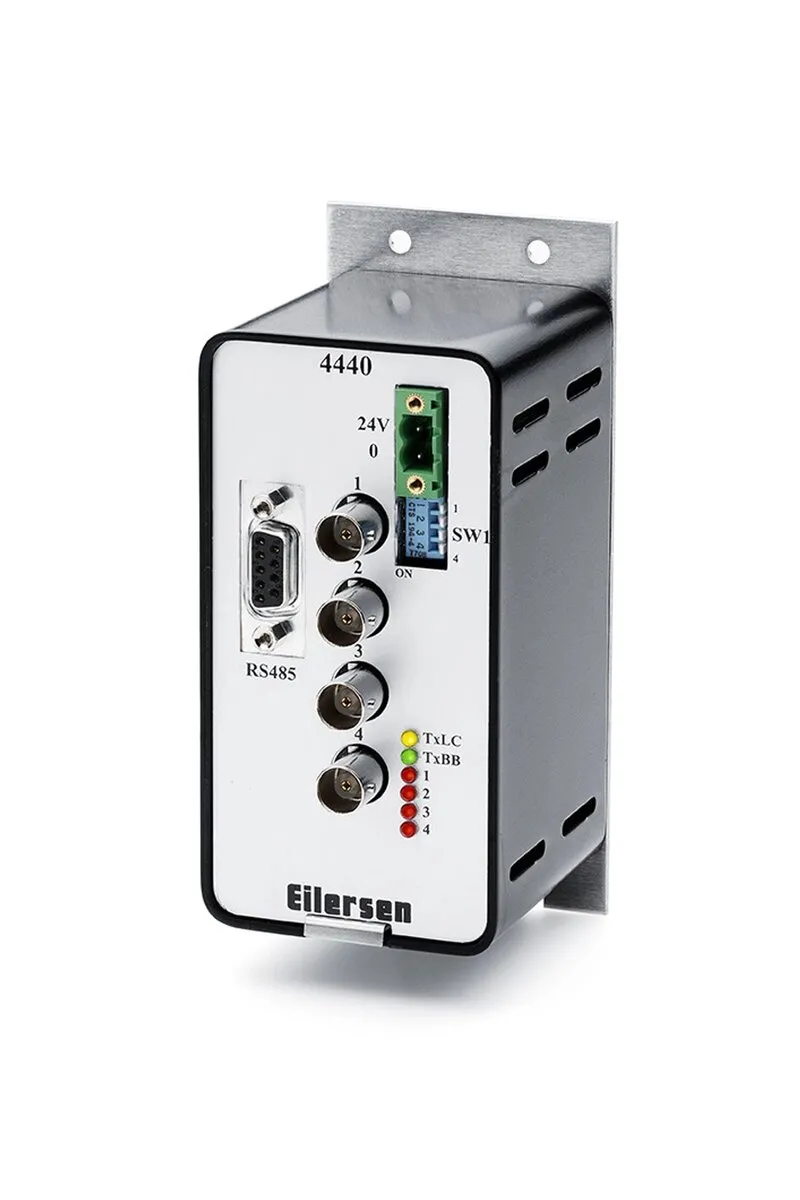

Serial Interface Module 4X40A

ATEX and IECEx certified (zone 1, 2, 21, 22) RS485 interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via RS485. The interface module type 4X40A can also be used in non-ATEX installations.

Product Details

Model	Types	Interface	Input
Serial Interface Module 4X40A	4140A, 4240A, 4340A, 4440A	RS485	Up to 4 digital load cells
