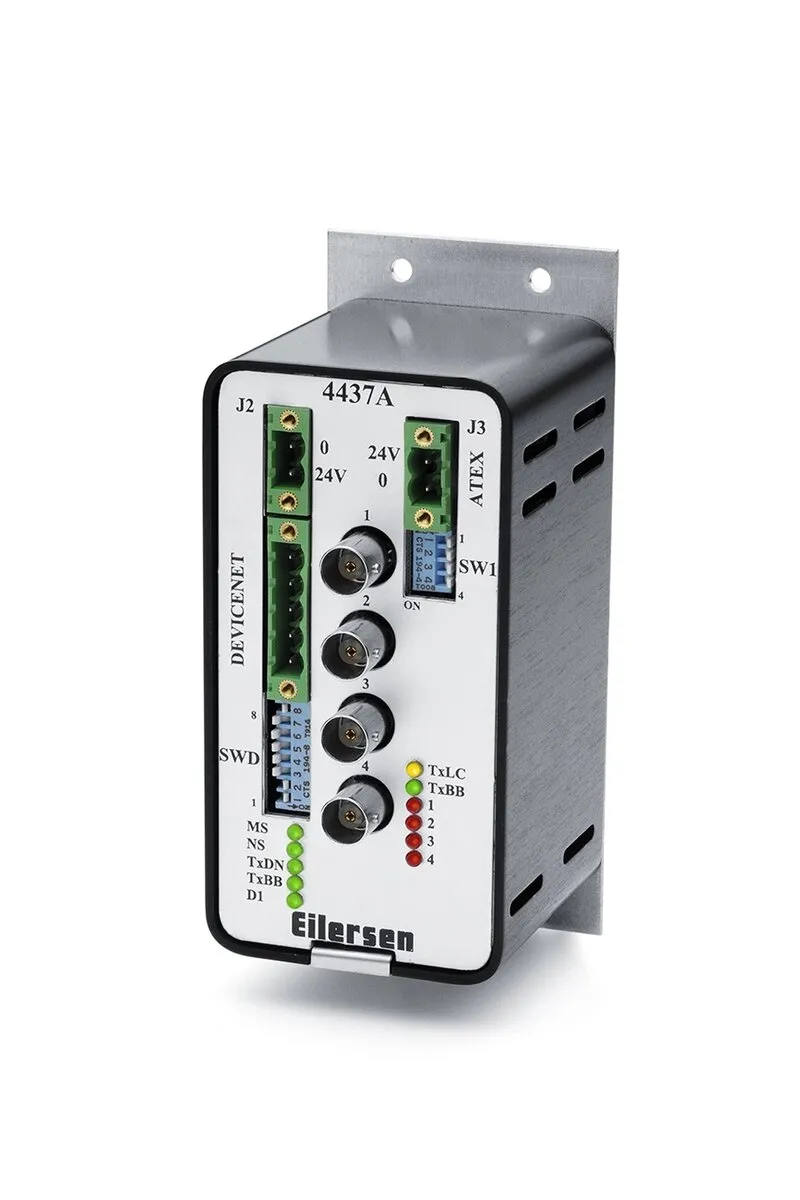

DeviceNet Interface Module 4X37A

ATEX and IECEx certified (zone 1, 2, 21, 22) DeviceNet interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via DeviceNet. The interface module type...

WEIGHING MODULES

DeviceNet Interface Module 4X37A

ATEX and IECEx certified (zone 1, 2, 21, 22) DeviceNet interface module for directly interfacing up to 4 digital ATEX / IECEx load cells via DeviceNet. The interface module type 4X37A can also be used in non-ATEX installations.

Product Details

Model	Types	Interface	Input
DeviceNet Interface Module 4X37A	4137A, 4237A, 4337A, 4437A	DeviceNet	Up to 4 digital load cells
