Compression Load Cell CH100 (CH100-Ex) |

Compression Load Cell CH100 (CH100-Ex)

COMPRESSION TYPE LOAD CELLS

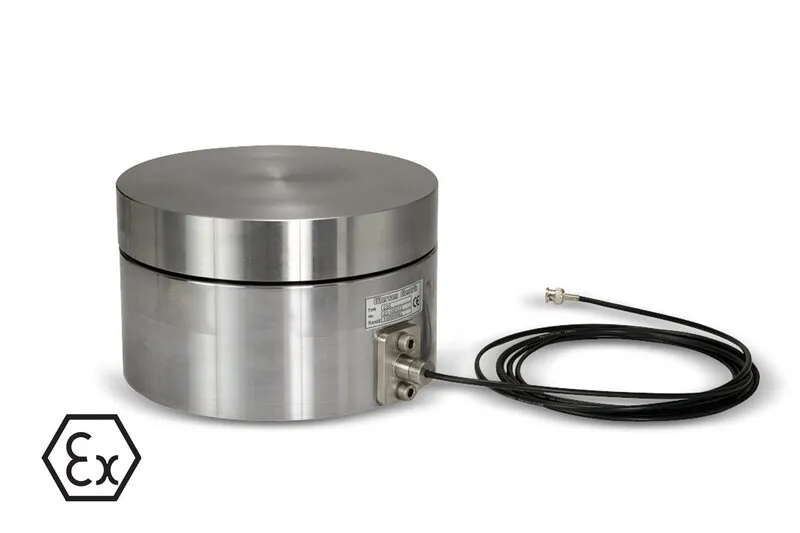

Compression Load Cell CH100 (CH100-Ex)

Robust digital ATEX and IECEx certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The CH-Ex load cell can be used in ATEX (Ex) IECEx and non-ATEX applications.

Product Details

Model	Type	Standard Capacities ( Ton )	Safe Overload Tolerance	Accuracy Classes
CH100 Series	CH100 (Non-ATEX) CH-Ex100 (ATEX)	100 tons	Up to 300% of rated capacity	Industrial 0.25%

Documents
