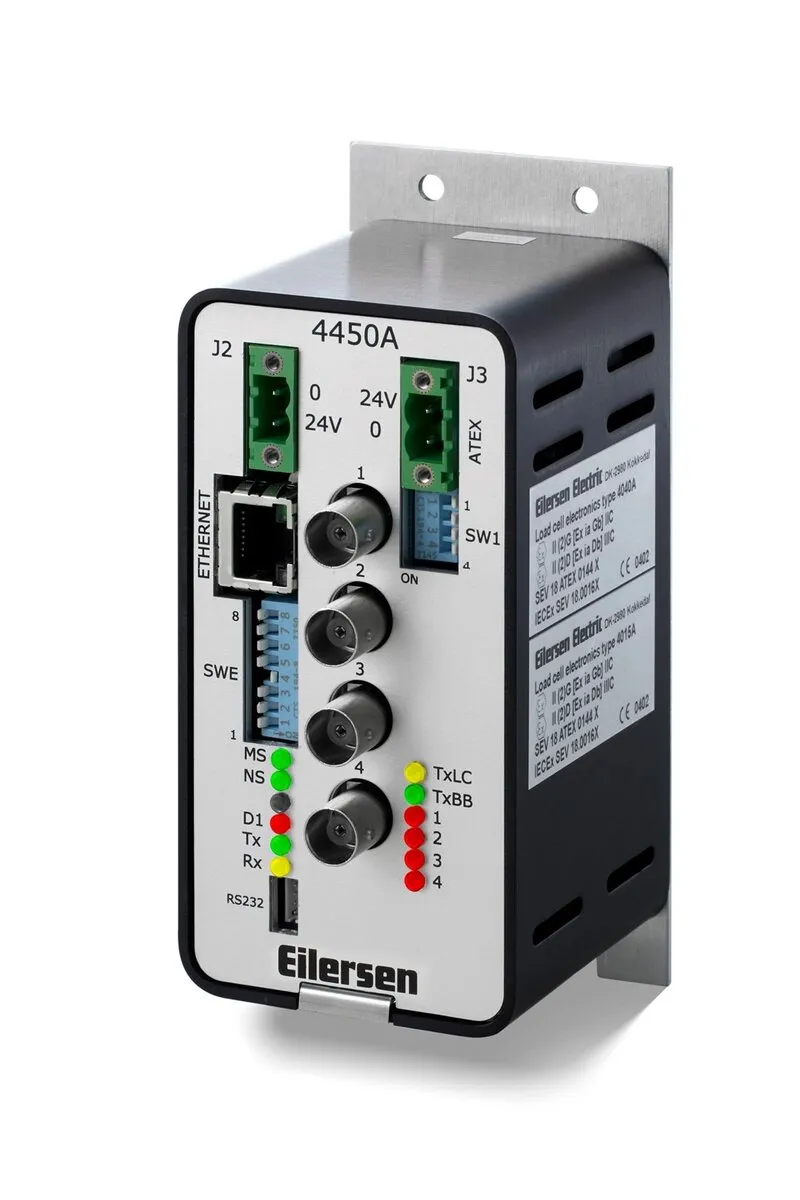

EtherNet/IP module 4X50A

ATEX and IECEx certified (zone 1, 2, 21, 22) EtherNet/IP interface module for directly interfacing up to 4 digital ATEX / IECEx load cells. The interface module type 4X50A can...

WEIGHING MODULES

EtherNet/IP module 4X50A

ATEX and IECEx certified (zone 1, 2, 21, 22) EtherNet/IP interface module for directly interfacing up to 4 digital ATEX / IECEx load cells. The interface module type 4X50A can also be used in non-ATEX installations.

Product Details

Model	Types	Interface	Input
EtherNet/IP module 4X50A	4150A, 4250A, 4350A, 4450A	EtherNet/IP	Up to 4 digital load cells

Documents
