EilerCal Mobile Tank Weighing and Calibration Systems

Introducing the EilerCal™ As the original creator of the force tensioning system for calibration, Eilersen is now ready with a new and improved design. The new Eilersen EilerCal™ (patents pending) solution...

EILERCAL MOBILE TANK WEIGHING and CALIBRATION SYSTEMS

EilerCal Mobile Tank Weighing and Calibration Systems

Introducing the EilerCal™

As the original creator of the force tensioning system for calibration, Eilersen is now ready with a new and improved design. The new Eilersen EilerCal™ (patents pending) solution consist of a customized high quality hydraulic cylinder, a digital reference load cell measuring the applied force, and a weighing terminal with a display.

The New Standard in Calibration Technology
The EilerCal force transfer system is developed to remove the need for weights and/or water when calibrating all types of load cells. Using the EilerCal™, technicians are able to frequently perform quick calibrations of installed tanks - without tank entry and risk of contamination.

Product Details

Introducing the EilerCal

As the original creator of the hydraulic calibration solution, Eilersen is now ready with a new and improved design. The EilerCal (patents pending) is developed for easy, quick, and reliable calibration of weighing systems on tanks, totes, and vessels. Using the EilerCal, technicians can frequently perform quick calibrations - all without adding liquids and risking tank contamination. Use the EilerCal to calibrate weighing systems of all brands, and all load cell technologies.

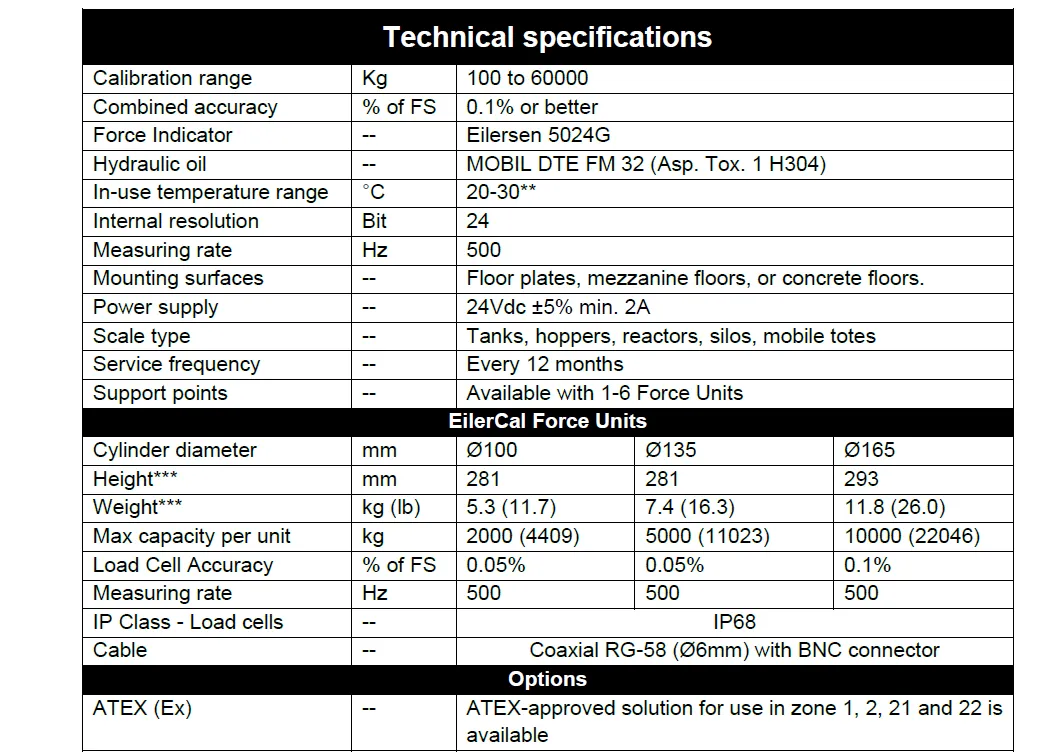

Technical Specifications and Capacities ;

How does it work?

The EilerCal system is delivered with custom hydraulic cylinders and digital reference load cells attached between the tank and a fixed surface. Using a manual hydraulic pump, the technician can contract the cylinder, thereby applying force on the load cells. The force can be displayed in kilos or pounds for easy calibration.

Why use EilerCal?

Eliminate waste of liquids and single use equipment
Reduce contamination risk
Reduce production downtime Improve working environment
Useable on existing tanks after modification
Increase calibration accuracy and resolution
Easy to use for everyone after a short introduction
Detachable when not in use
