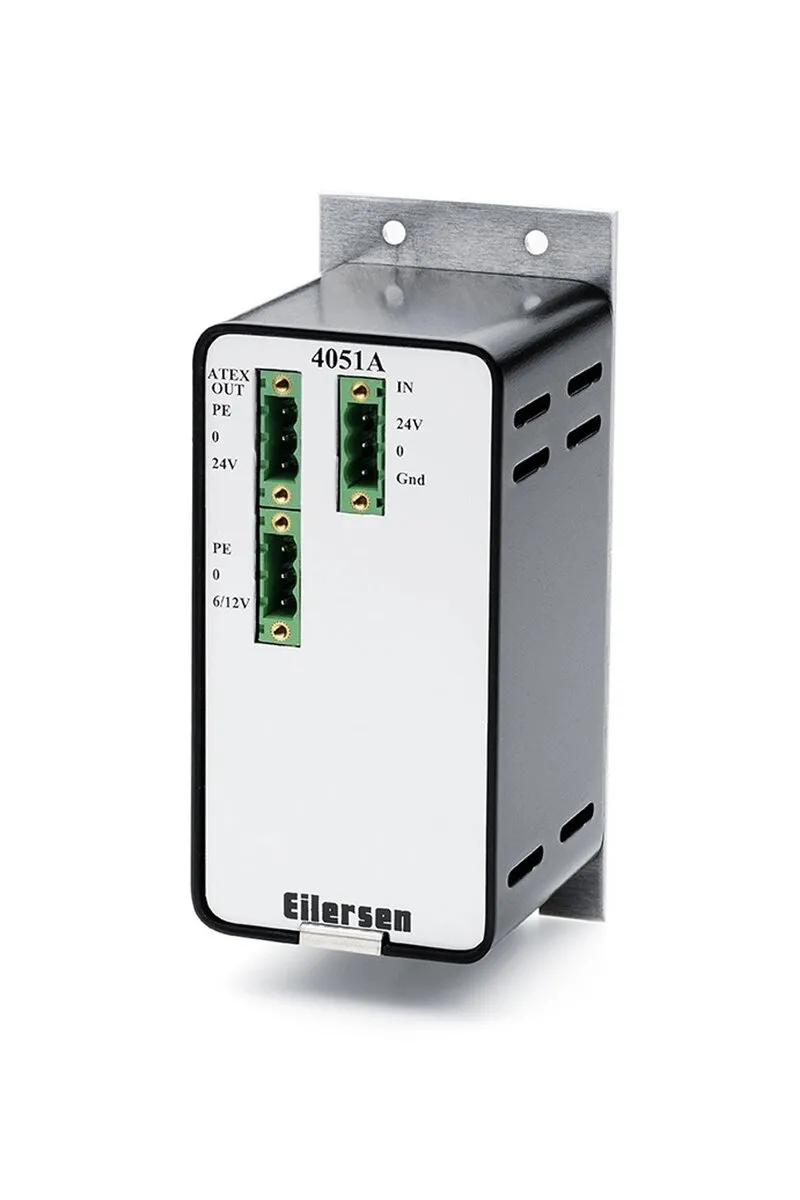

ATEX-Ex Power Supply type 4051A

ATEX and IECEx certified (zone 1, 2, 21, 22) power supply type 4051A used for supplying 4XXXA interface modules when used in ATEX / IECEx rated applications. The 4051A power...

WEIGHING MODULES

ATEX-Ex Power Supply type 4051A

ATEX and IECEx certified (zone 1, 2, 21, 22) power supply type 4051A used for supplying 4XXXA interface modules when used in ATEX / IECEx rated applications. The 4051A power supply and 4XXXA interface module must be installed in safe area i.e. outside the ATEX zone.

Product Details

Model	Types	Interface	Input
ATEX and IECEx certified (zone 1, 2, 21, 22) Power Supply type 4051A	4051A	ATEX-IECEx power supply for Interface Modules	Module+ 4 digital load cells

Documents
