Compression Load Cell CH500 (CH500-Ex) |

Compression Load Cell CH500 (CH500-Ex)

COMPRESSION TYPE LOAD CELLS

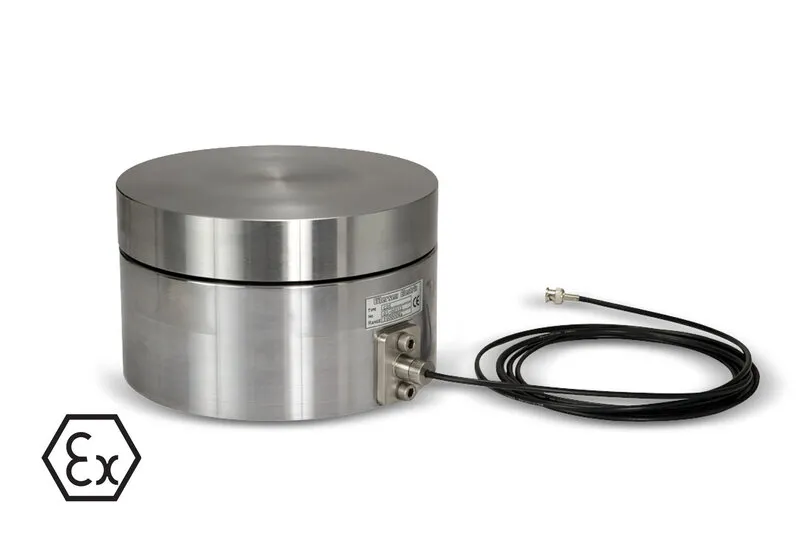

Compression Load Cell CH500 (CH500-Ex)

Robust digital ATEX and IECEx certified heavy duty compression load cell produced in stainless steel and hermetically sealed to IP68 for installation under large silos, tanks, vessels and heavy duty applications. The CH-Ex load cell can be used in ATEX (Ex) IECEx and non-ATEX applications.

Product Details

Model	Type	Standard Capacities ( Ton )	Safe Overload Tolerance	Accuracy Classes
CH500 Series	CH500 (Non-ATEX) CH-Ex500 (ATEX)	200, 300, 400, 500 tons	Up to 300% of rated capacity	Industrial 0.25%

Documents
